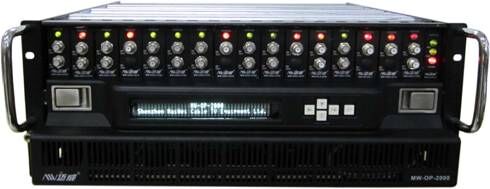

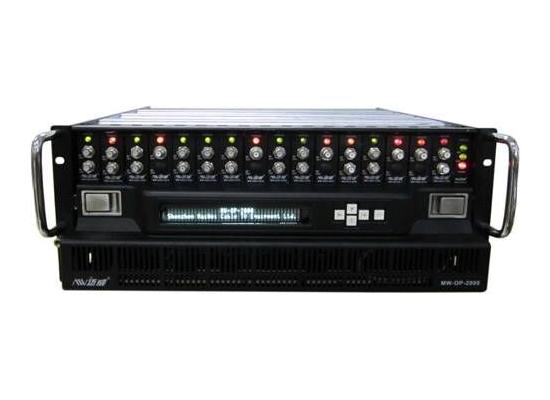

MW-OP-2000

Transmission platform is can adapt to the development of HFC network, expanding the high-performance full modular broadband transmission systems. It consists of downlink optical transmitter module, up/downlink optical receiver module pre-amplifier, RF switches, power supply, control module, a display unit and a keyboard composition,High-density plug-in design for the headend, to build large-scale systems, and expand transmission capacity to provide convenient, making the system easier to maintain, easier centralized management. Optical transmission platform uses 4U, 19 'standard chassis design, in which two power supplies, a main control unit and 16 standard application modules, where the display / keyboard unit at the front

Download
Description

Ø  Rack can accommodate up to 16 standard application modules

Ø  Each slot unified electrical interface

Ø  Use 2 * 40 VFDS display, English display and five keyboard buttons

Ø  All modules with hot plug function

Ø  With functions of automatic module identification

Ø  The unique fiber interface design and practical fiber accommodating device

Ø  Alarm and positioning for easy maintenance

Ø  Enables local and remote network management functions

Ø  Redundant power supply module backup function
