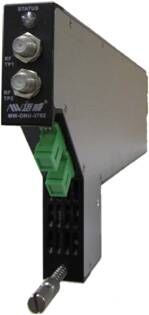

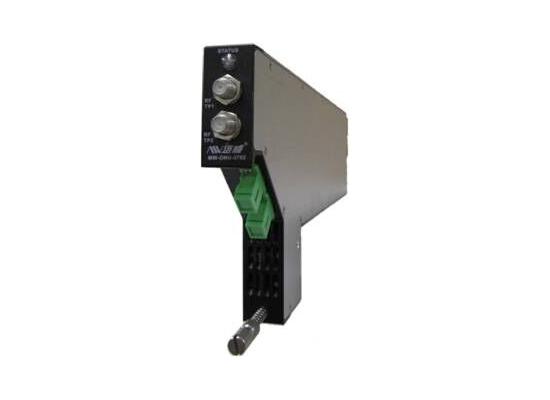

MW-ONU-3702

MW-ONU-3702 optical transmitter module with small size, compact structure, good heat dissipation characteristics, low noise optical detector, and the optical platform with superior performance of front-end equipment constituted, can be widely used in large and medium cities HFC back transmission system.Combined with microprocessor technology and the bus structure, to ensure the images, data and voice signals, high-quality transmission. Built-in microprocessor monitors all work status parameters and bus transfer to the platform through the network management controller, status inquiry via the keyboard, LCD display.The module has two return optical receiver, each channel can be received 1310nm or 1550nm optical signal and converts it into a radio frequency signal; each optical receiver has MGC manual level control function, but can also be controlled through the network management each RF channel on or off.

Download
Description
Ø  5-200MHz operating bandwidth

Ø
-10dBm receiving low optical power, high dynamic range, high linear output

Ø
Built-in microprocessor, its parameters acquisition and control standards are followed HMS

Ø
Each application module can easily insert slot(except the power, network management        module),support hot plug

Ø
Connectors have the import function, can blind plug

Ø
Optical AGC function or MGC level adjustment function
