MW-ONU-6514

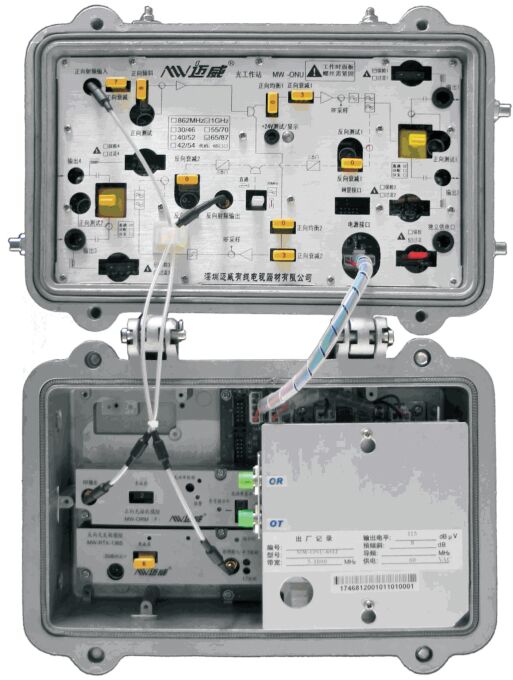

MW-ONU standard-class optical workstation is designed to meet the requirements of modern bi-directional HFC broadband transmission network. The downlink channel transforms optical signals into radio frequency signals and then transfers them; the uplink channel transforms the returned electric signals into optical signals and then transfers them. The standard configuration of MW-ONU standard class optical workstation is two-way and bi-directional output, and the output level of its standard configuration108dBV (-1dBm optical power input). It has the function of both optical AGC and network management, so it can configure the optical workstation into three-way or four-way bi-directional output according to the network's actual situation. The working voltage includes two, namely, AC 60V and AC 220V. The 60V power supply model is suitable for centralized power supply, on which there are independent power supply ports and all other ports can also feed power outwards, whose AC working voltage ranges from 35V to 90V. The housing of MW-ONU standard class optical workstation is water-proof and cast aluminum, so it is suitable for field work. All kinds of options and fittings can meet your various functional requirements.
