MW-ONU-7514

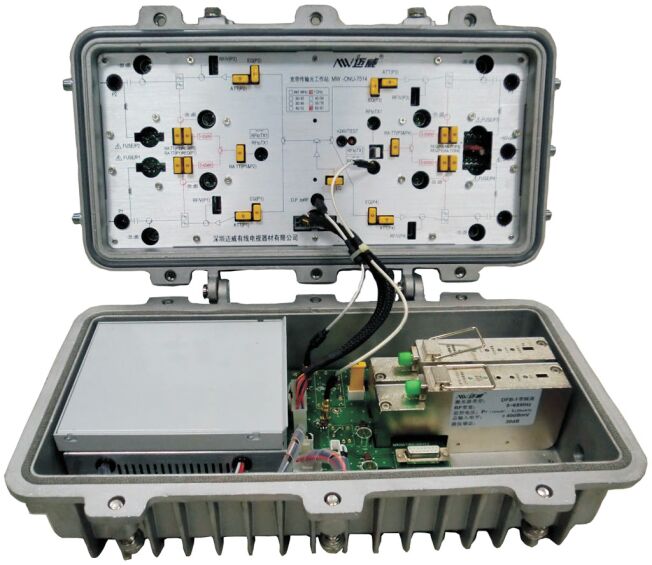

MW-ONU-7514 broadband optical node is designed to suit the need of diplex HFC broadband transmission.The downstream and the upstream respectively performs lightwave-to-RF and RF-to-lightwave signal conversions in an optical transmission link. Configured with four paths of diplex outputs.Nominal output RF power is 110dBuV (0dBm optical power input). The power supply is AC 60/220V.Configured with local power supply port and each port feed electricity outside.The working voltage is 35V90VAC,and the ways of working are single and diplex. ONU-7514 optical node is furnished in an aluminum housing that protects the electronics from water .The installation is both horizontal and vertical.

Description


* Modulation design; flexiable configuration;convenient expansion

* Configured with 2 optical receiver and 1 optical transmitter

* Gain control by manual and 1dB step adjustment; Equalizer adjustment of fixed attenuator

* Configured optical receiver and GaAs module;

* Four RF 110dBµV output

* Upstream optional ingress switching control

* Configured with network management port

* 15 amp power passing

*  Efficient switch power supply
