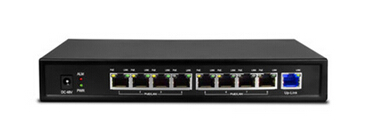

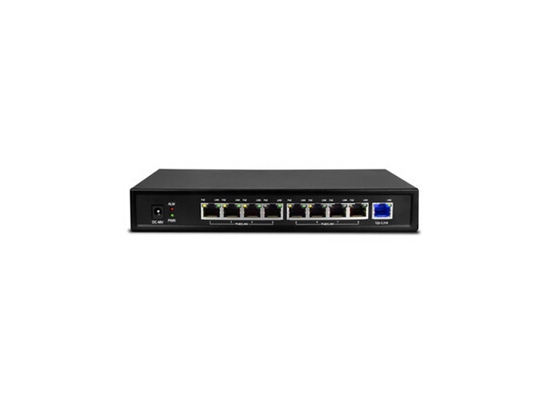

MW - PSF1009B is independent research and development of 9 MB PoE switches, provide 9 m adaptive 10/100 RJ45 port, support for each port MDI/MDIX auto-reverse function, and can achieve wire-speed forwarding. 1-8 port with functions of PoE, PoE a maximum power of 120 w. MW - PSF1009B simple and convenient use, no configuration, plug and play, flexible extended family, office network, without being limited by the power line layout.
9 m adaptive 10/100 RJ45 port
1 ~ 8 port supports IEEE 802.3 af/ats standard PoE power supply
Single port POE power of IEEE802.3 af (15.4 W), IEEE802.3 ats (30 W)
The PoE a maximum power of 120 w
Support IEEE802.3 X full duplex flow control and Backpressure half duplex flow control
Support port automatically turning (Auto MDI/MDIX) function
All ports are wire-speed forwarding ability
