MW-MB(1G)

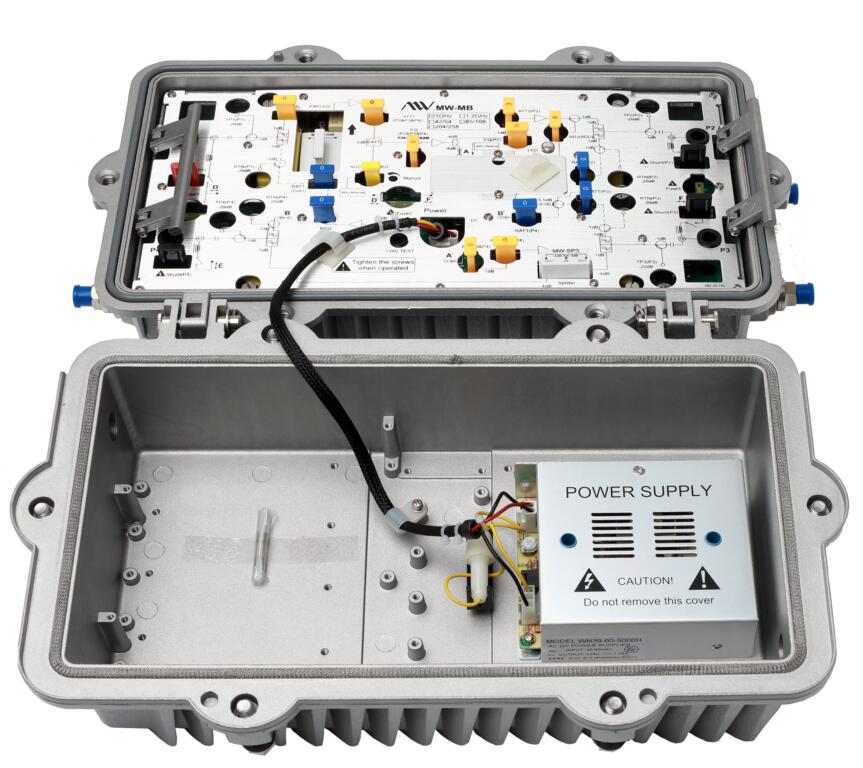

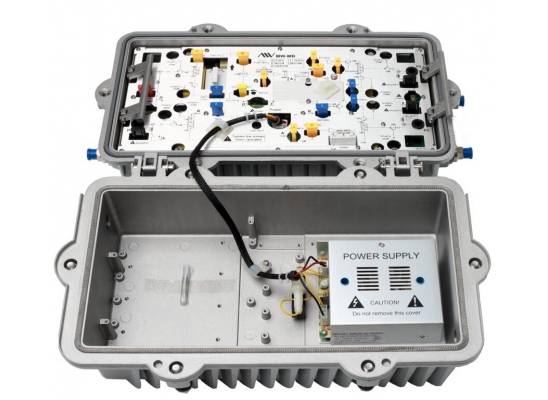

MW-MB is a trunk amplifiers which can be installed in HFC network or traditional cable network; It is balanced amplifier which have three RF output ports ,The max gain can reach more than 40dB The power supply is ~60V;Each port feed AC power outside.The working voltage range is ~35V90VAC;. MW-MB is furnished in an aluminum housing that protects the electronics from water .The installation is both horizontal and vertical.

Description

※  5-1000MHz platform

※  35-90Vac power supply,220v optionl

※  –20dB directional test points/ports

※  Two-way operation

※  Three independent  RF output

※  15-amp power passing
