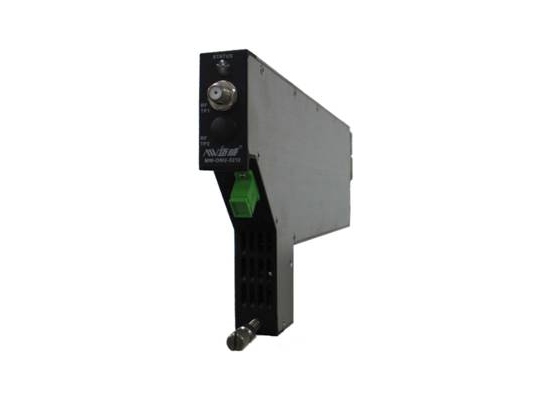

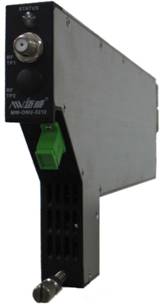

MW-ONU-3212

MW-ONU-3212 type optical receiver module has a small size, compact structure, good heat dissipation characteristics, low noise optical detector and the optical platform with superior performance of front-end equipment constituted,can be widely used in large and medium cities HFC positive the transmission system. Combined with microprocessor technology and the bus structure, to ensure the image, high-quality transmission of data signals. Built-in microprocessor monitors all work status parameters and bus transfer to the platform through the network management controller, status inquiry via the keyboard, LCD display. This module is a single forward receiver, each can receive 1310nm or 1550nm optical signal and converts it into a radio frequency signal.

Description

Ø  The operating bandwidth of 45-1000MHz

Ø  Single maximum output level 102dBuV

Ø  Built-in microprocessor acquisition and control its parameters are followed HMS standard. Meet the national standard GB/T 20030-2005

Ø  Each application module can easily insert slot(except the power, network management module),support hot plug

Ø  Connectors have the import function, can blind plug

Ø  RF AGC function, ensure output level stable

Ø  Panel with status display LED, RF test port

Ø  Front panel has -20±1dB RF test port for easy testing
